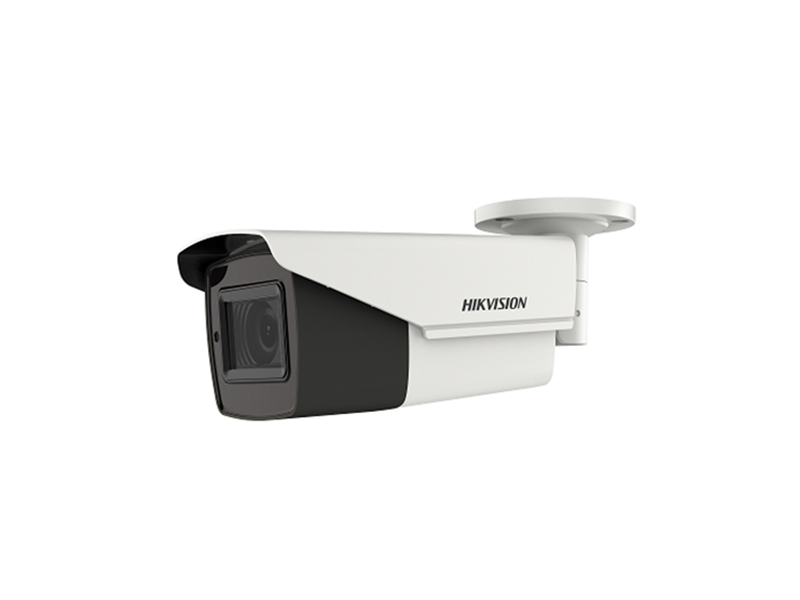

DS-2CE16U1T-IT5F

DS-2CE16U1T-IT5F

Անվտանգության համակարգեր
Իմանալ արժեքը
(Տուփ)
Առկա
Մեծածախ վաճառքի պայմաններ
Ավելացնել զամբյուղ

8.3MP @12.5fps(Default),5MP@20fps,4MP@25fps(P)/30fps(N),2MP@25fps(P)/30fps(N), EXIR, 80m IR, Outdoor EXIR Bullet , ICR, 0.01 Lux/F1.2, 12VDC, Smart IR,DNR, OSD Menu(Up the Coax), IP67,3.6/6/8/12mm Lens,Support TVI/AHD/CVI/CVBS video signal output

  • Camera
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s ,NTSC: 1/15 s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOV79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • Lens MountM16
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
  • Frame RateTVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps,CVI: [email protected], 8MP@15fps,AHD: [email protected], 8M@15fps,CVBS: 960H P/N
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR/ 105 dB
  • Image EnhancementBLC
  • White BalanceAuto/Manual
  • AGCYes
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialFront cover: Metal,Main body: Plastic,Bracket: Metal
  • Dimension81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
  • Approx.435 g (0.96 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 5.9 W
  • IR RangeUp to 80 m
  • Approval
  • ProtectionIP67
